有时，在尝试使用其他Windows 10系统的^{(Windows 10)}远程桌面^{(Remote Desktop)}打开应用程序时，会出现以下错误消息 -抱歉，OpenGL 版本太低，请升级显卡驱动程序^{(Sorry, the version of OpenGL is too low, please upgrade the graphics driver)}。当有人尝试访问 3D工具时，这在^(Tools)CLO应用程序（一个 3D 服装模拟程序）中尤为明显。如果您在使用不同系统的远程桌面^{(Remote Desktop)}打开应用程序时也遇到同样的问题，那么本教程将帮助您找到解决方法。

OpenGL是Open Graphics Library的简写。它主要用于通过图形处理器单元交互来渲染 2D 和 3D 矢量图形。

OpenGL版本太低

^{(Remote Desktop Protocol)}自Windows^(Windows) v1909以来，远程桌面协议及其性能已通过将主机GPU替换为更轻的版本而得到改进。此更改旨在在建立远程会话时节省网络带宽。不过^{(Nevertheless)}，如果您遇到一些问题，请检查您的Windows 10 版本是否可以通过^(Windows)本地组策略^{(Local Group Policy)}还原或撤消更改。为了这，

1. 启动本地组策略编辑器。
2. 选择计算机配置。^{(Computer Configuration.)}
3. 找到管理模板^{(Administrative Templates)}。
4. 展开它并选择Windows Components。
5. 转到远程桌面服务^{(Remote Desktop Services)}。
6. 选择远程桌面会话主机^{(Remote Desktop Session Host)}。
7. 展开远程会话环境^{(Remote Session Environment)}。
8. 在右侧窗格中，启用两个策略
9. 对于 Windows 10 Pro v1909，禁用Use WDDM graphics display driver for Remote Desktop Connection。

该问题主要是由于远程桌面协议^{(Remote Desktop Protocol)}工作引起的。它创建了只使用软件OpenGL的主机的虚拟化桌面^(Desktop)版本，它不一定使用在硬件模式下运行时所需的相同扩展。因此，RDP开始将 2D 位图图像从主机发送到远程客户端。

启动本地组策略编辑器^{(Launch Local Group Policy Editor)}。Press Win+R打开“运行^(Run)”对话框。

在框的空白字段中，输入“ gpedit.msc ”并按“ Enter ”。

当组策略编辑器窗口打开时，转到“计算机配置^{(Computer Configuration)}”并选择其下的“管理模板^{(Administrative Templates)}”文件夹。

接下来，选择“ Windows Components ”文件夹。展开文件夹以导航到“远程桌面服务^{(Remote Desktop Services)}”。

在这里，选择“远程桌面会话主机^{(Remote Desktop Session Host)}”并展开它下面的“远程会话环境^{(Remote Session Environment)}”文件夹。

现在，切换到右窗格，并启用以下策略：

• 为远程桌面^{(Remote Desktop)}连接启用H.264/AVC 444 图形^(Graphics)模式。
• 为远程桌面连接^{(Remote Desktop Connections)}启用H.264/AVC硬件编码。

如果您使用的是Windows 10 pro v1909，请禁用“使用 WDDM 图形显示驱动程序进行远程桌面连接^{(Use WDDM graphics display driver for Remote Desktop Connection)}”。为此，将选项加倍，选择“禁用^(Disable)”。

按“应用^(Apply)”按钮。

此后^(Hereafter)，您将不会在Windows 10中看到“ ^{(Windows 10)}OpenGL太低”错误消息。

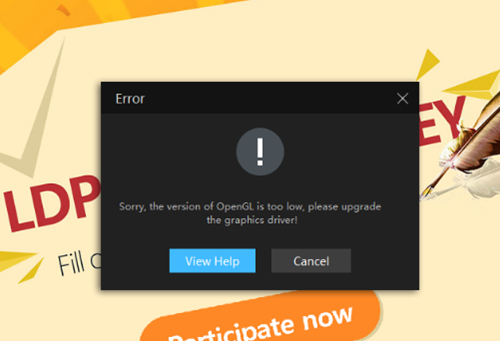

Sorry, the version of OpenGL is too low, please upgrade the graphics driver

Sometimes, while trying tо open an app using Remote Desktop from a different Windows 10 system, the following error message appears – Sorry, the version of OpenGL is too low, please upgrade the graphics driver. This is especially seen with CLO app (a 3D garment simulation program) when someone tries to access 3D Tools. If you too are experiencing the same problem while opening an app using Remote Desktop from a different system then, this tutorial will help you find a fix for it.

OpenGL is a shorthand for Open Graphics Library. It is mainly used for rendering 2D and 3D vector graphics via graphics processor unit interactions.

The version of OpenGL is too low

Remote Desktop Protocol and its performance has been improved since Windows v1909 by replacing host GPU with a lighter version. This change is in attempt to save network bandwidth when the remote session is established. Nevertheless, if you are experiencing some issues, check if your Windows 10 build can revert or undo the change via Local Group Policy. For this,

1. Launch Local Group Policy Editor.
2. Choose Computer Configuration.
3. Locate Administrative Templates.
4. Expand it and select Windows Components.
5. Go to Remote Desktop Services.
6. Select Remote Desktop Session Host.
7. Expand Remote Session Environment.
8. In the right pane, Enable two Policies
9. For Windows 10 Pro v1909, disable Use WDDM graphics display driver for Remote Desktop Connection.

The problem mainly arises due to Remote Desktop Protocol working. It creates a virtualized Desktop version of the host machine that only uses software OpenGL which doesn’t necessarily use the same extensions required when running in hardware mode. So, RDP starts sending out 2D bitmap images from the host to the remote client.

Launch Local Group Policy Editor. Press Win+R in combination to open the ‘Run’ dialog box.

In the empty field of the box, type ‘gpedit.msc’ and press ‘Enter’.

When the Group Policy Editor window opens, go to ‘Computer Configuration’ and choose ‘Administrative Templates’ folder under it.

Next, select ‘Windows Components’ folder. Expand the folder to navigate to ‘Remote Desktop Services’.

Here, select ‘Remote Desktop Session Host’ and expand ‘Remote Session Environment’ folder under it.

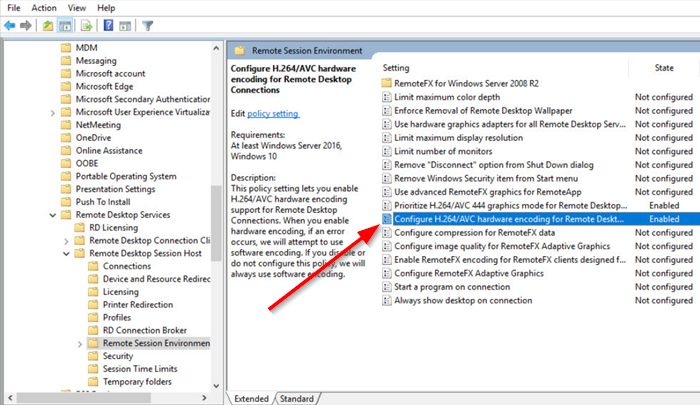

Now, switch to the right pane, and enable the following Policies:

• Enable H.264/AVC 444 Graphics mode for Remote Desktop connections.
• Enable H.264/AVC hardware encoding for Remote Desktop Connections.

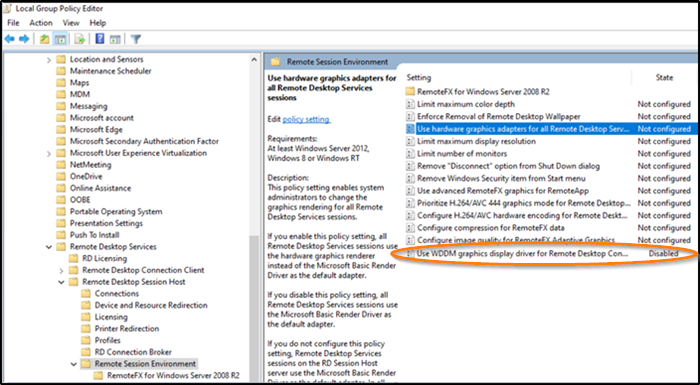

If you are using Windows 10 pro v1909, disable ‘Use WDDM graphics display driver for Remote Desktop Connection’. For this, double the option, select ‘Disable’.

Press the ‘Apply’ button.

Hereafter, you should not see ‘OpenGL is too low’ error message in Windows 10.
